Product introduction
INTRODUCTION

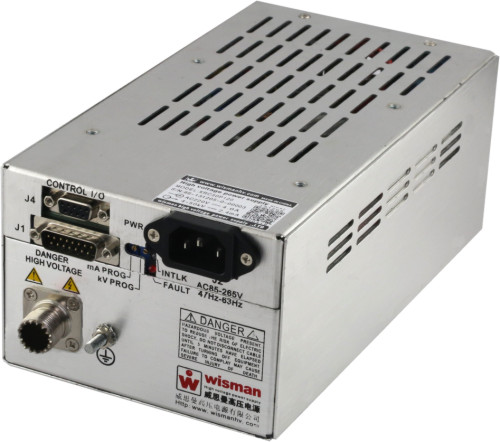

Wisman MRC series are high-stability with positive or negative high voltage output. The MRC series can be accurately measured and controlled internally, externally,or controlled by a computer. The MRC series has the protection function includes overvoltage, overcurrent, arcing, and safety interlock.
APPLICATIONS
High voltage testing
Electron Beam/Ion Beam
Massspectrometry
Electrostatic chuck(ESC)
Scintillators
Electron Guns
Ion Guns
Nuclear Instruments
Electrostatic lenses
ctroscopy
Electrophoresis
Electrospinning
Capacitor charging
General Laboratory Usage
DNA encing
Protein extraction
Electrostatic printing
High voltage bias
Medical industry
Scientifice xperiments
Industrial applications.
SPECIFICATIONS
Input: 85-265Vac, 47-63Hz, Maximum Current 5A
Output: 1KV、3KV、5KV、10KV、15KV、20KV、30KV、40KV、50KV、60KV、70KV
Output power:120w
Voltage control:
Local: The local internal multi-turn potentiometer can set the output voltage from 0V to the fullest.
Remote:The 0~10V external control signal can set output voltage from 0V to the fullest.
Current control:
Local:The 0~10V external control signal can set output current from 0V to the fullest.
Remote:The local internal multi-turn potentiometer can set the output current from 0A to the fullest.Voltage Regulation:
Load: 0.01% of output voltage, no load to full load.
Line: ±0.01% for ±10% change in input voltage.
Current Regulation:
Load: 0.01% of output current from 0 to rated voltage.
Line: ±0.01% of rated current over specified input range.
Ripple:0.1% p-p of maximum output voltage.
Voltage Stability:≤0.01%/hour, 0.02% per 8 hours after a 1/2 hour warm up
Temperature Coefficient: ＜25ppm per °C, voltage or current regulated.
Working temperature: 0 to 40°C
Storage temperature -40°C to +85°C
Humidity: 20 to 85% RH , non-condensing
Dimensions:D240mmx W92mm xH140mm
Voltage and current indication: 0 to +10V, accuracy is 1% under rated output conditions.
Cooling method: natural cooling
Connector:
High-voltage output connector: The recessed insulating conduit and the high-voltage cable protruding in are connected by a metal connector. The total length of the high-voltage cable is 1 meter.
Input and output connector: DB15 terminal connector, including control and display signals.
For information concerning our high voltage products, please call at 086-029-33693480 or visit our website www.wsmhv.com
