Product introduction
INTRODUCTION:
Wisman MRL series are high-stability and precision high-voltage power modules. MRL series module power supplies provide positive or negative high voltage output. MRL series module power supply can be accurately measured and controlled internally, externally and by computer. MRL series module power supply protection includes overvoltage, overcurrent, arcing, safety interlock, etc.
APPLICATIONS
Electrostatic discharge Testing ESD,
Ultrasonic transducers,
Electrophoresis,
DNA sequencing,
Electron Beam and Ion Beam,
Electrostatic chuck,
High voltage bias,
Hipot Testing,
Cable Testing
Provides power to the pulse powe,
Electrospinning,
Capacitor Charging,
Semiconductor Testing,
Electronic component aging,
Gas Chromatography,
Blood Analysis,Cathode X-Ray,
Medical,
Chemical Applications,
Science,
Laboratory Applications,
Industrial Applications.
SPECIFICATIONS
Input: AC and DC optional, maximum current 8A.
Output: 1KV, 3KV, 4KV, 5KV, 6KV, 7KV, 8KV, 9KV, 10KV, 15KV, 20KV, 30KV, 40KV, 50KV, 60KV, 70KV, 80KV, 100KV,
Output power: 75W, 90W, 100W, 120W, 150W, 200W optional
Voltage control:
Local: the multi-turn potentiometer that comes with the power supply can set the output voltage from 0V to the full voltage.
Remote: external 0 to 10V control signal can adjust the output from 0V to the highest output voltage
Internal the power supply: The local multi-turn potentiometer can set the current from 0A to the highest current.
External remote control: External 0 to 10V control signal can set the current from 0A to the highest current.
Line regulation :
Relative load: 0.01% (no load to rated load)
Relative input: ±0.01% (input voltage change is ±10%)
Current regulation:
Relative load: 0.01% (no load to rated load)
Relative input: ±0.01% (input voltage change ±10%).
Ripple voltage: Under the premise of output rated voltage, the peak value of the ripple voltage is 0.1% of the highest output voltage. Lower ripple can be customized.
Stability: ＜ 25ppm per hour after starting on for half an hour.
Temperature coefficient: ≤25ppm per degree Celsius
Working temperature: 0 to +50°C.
Storage temperature: -40 to +85°C.
Humidity: 20% to 85% RH, no condensation
Voltage and current indication: 0 to +10V, accuracy is 1% under rated output conditions.
Dimensions: 1KV-40KV length 166mm, width 120mm, height 120mm.

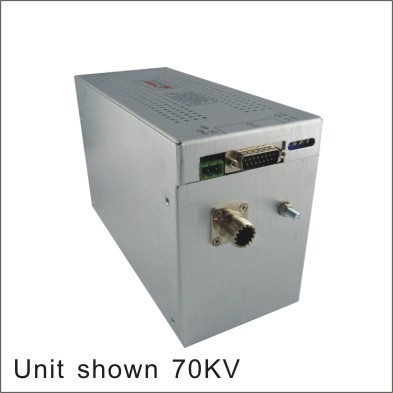

40KV-70KV is 230mm long, 100mm wide, and 140mm high.
40KV-70KV length 405mm, width 190mm, height 155mm
Cooling method: natural cooling
Connector:
High-voltage output connector: The recessed insulating conduit and the high-voltage cable protruding in are connected by a metal connector. The total length of the high-voltage cable is 1 meter.
Input and output connector: DB15 terminal connector, including control and display signals
