Product introduction
45% Smaller than XRN
INTRODUCTION:

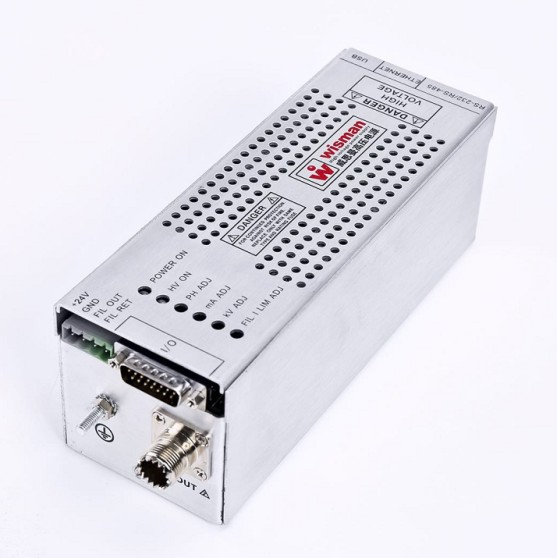

Wisman's XN series is the smallest x-ray generator in the market today. It is 45% smaller than XRN series, the weight is 1.5kg, which output voltage ranges from10kV to 50kV and offers filament current to ground, 0~5Vdc adjustable, filament current 0.3A to 3.5A adjustable. XN series is with the function of overcurrent, overvoltage, arc and safety interlock etc and can be controlled locally and remotely, providing USB2.0, RS-232 and RS485 option.
Typical applications:
X-ray fluorescence meter
Aluminum strip thickness measurement
Aluminum plate thickness measurement
Paper Film
Aluminum foil thickness measurement
Online element analysis
X-ray fluoroscopy
Particle size detection
Density measurement
Paper composition detection
Online process control
ROHS detection
Thickness
Printed circuit board inspection system
X-ray fluorescence analysis
Radiography field
X-ray imaging
Multi-layer PCB alignment
Particle size detection
Density measurement
Process control
X-ray spectroscopy
Welding head
Wire head inspection.
Corresponding X-ray tubes (cathode or anode grounded): Kevex, Oxford, RTW, Superior, Varian, Trufocus and several domestic brands.
SPECIFICATIONS
Input: 24V±10% DC, maximum current 5.0A.
Output: 10KV, 20KV, 30KV, 40KV, 50KV, 9 kinds of highest voltage output optional, output power 50W .
Voltage control:
local: the multi-turn potentiometer can set the output voltage from 0V to the highest voltage.
Remote control: external 0 to 10V control signal can adjust the output from 0V to the highest output voltage.
Launch control:
Local: the internal potentiometer sets the beam current between 0 and the full output current.
Remote control: external 0 to 10V control signal can adjust the output from 0V to the highest output current.
Filament power supply: current: 0-3.5A adjustable voltage: 0-5.5V adjustable
Voltage regulation:
Relative load: 0.01% (no load to rated load)
Relative input: ±0.01% (input voltage change ±10%)
Current regulation:
Relative load: 0.01% (no load to rated load)
Relative input: ±0.01% (input voltage change ±10%)
Ripple voltage: 0.1% p-p of the maximum rated output voltage.
Working temperature: 0℃ to +50℃
Temperature coefficient: ≤25ppm/℃, voltage and current.
Stability: half an hour after starting up, ≤0.02%/1 hour, ≤0.05%/8 hours.
Voltage and current indication: 0V to +10Vdc, proportional to 0 to rated output. Accuracy: ±1%
Dimensions: 2.95”H x 2.95”W x 8.06”D (75.00mm x 75.00mm x205.00mm)
Weight: 1.5kg
For more details, please click the PDF button to download the PDF file for viewing...
