Product introduction
INTRODUCTION

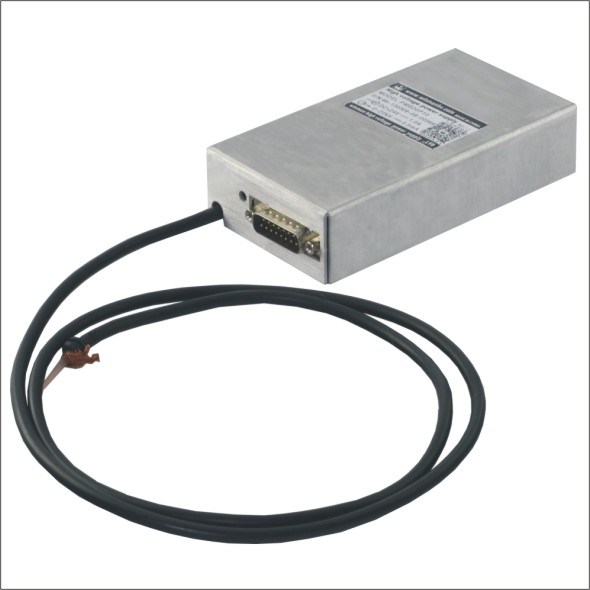

Wisman's PMA has a minimum ripple of 3mv. It is a special ultra-low noise, high stability, low ripple, and miniaturized module for photomultiplier tubes, mass spectrometers, and electron microscopes. The price is competitive. When digital RS232, RS485 control and RS-485 bus are optional, each high-voltage power supply can set an address.
PMA low temperature drift, 10ppm optional, six-sided shielding ultra-low noise. There are protections for overcurrent, short circuit, and arc fault.
APPLICATIONS
Mass spectrometry
Photomultiplier Tubes(PMT)
Microchannel plates(MCP)
Proportional Counters
GM Tube
Avalanche Photo Diode (APD)
Solid state detectors
Ionization Chambers
gas chromatography
Electron multiplier
Detectors
Nuclear Instruments
Electrophoresis
DNA sequencing
Radiation counter
Electron Beam
Ion Beam,High
voltage bias
Hipot Testing
Precision Lenses Image Intensifiers
Semicon-ductor Testing
Electrostatic discharge Testing
Provides power to the pulse power
Capacitor Discharging
Life Sciences
Medical chemical Applications
Science
Laboratory Applications
Industrial Applications
SPECIFICATIONS
Input Voltage:24Vdc±2%.
Input Current:≤1A
Output Voltage range：1KV,2KV,2.5KV,3KV,5KV,10KV,15KV,20KV,30KV
Maximum output power: 5W,10W,20W
Line regulation: 0.001% TYP
Load regulation: 0.001% TYP
High stability: 0.01% per hour, 0.02% per 8 hours
Ripple/noise: Within 5KV: typical 3mV (at maximum voltage and maximum current); maximum 5mV.
Output voltage control:
Controlled by external voltage (0 V to +10 V) or through External potentiometer setting (50 kΩ ±2.5 kΩ)
Voltage control input impedance: 80KΩ
Output voltage rise time: 200ms (0-99%)
Temperature Coefficient:25ppm/℃, 10ppm/℃ optional
Temperature:
Working temperature: 0℃ to 50℃
Storage temperature: -35℃ to +85℃
Humidity: below 85%.(non condensing)
Working humidity: below 50%, no condensing
Storage humidity: below 85%, no condensing
Protective function:
The module has input voltage polarity reverse protection, high control voltage or reverse connection protection, continuous overload protection, short circuit protection, and arc protection.
Dimension:
1KV-3KV:D130 X W70 X H30
5KV-10KV:D130 X W70 X H30
15KV-20KV:D165 X W70 X H30
25KV-30KV:D200 X W75 X H35
Weight:
1KV-3KV:280g（9.88 OZ)
5KV-10KV:420g（14.82 OZ)
15KV-20KV:650g（22.92 OZ)
25KV-30KV:950g（35.50 OZ)
