Product introduction
INTRODUCTION

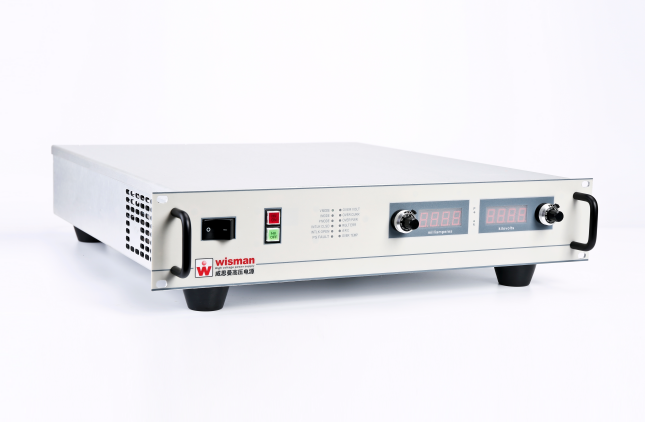

Wisman's DL06P1200 of 1200W high voltage power supplies: outputs ranging from 0kV to 60kV, positive or negative polarities in 136 different models .The standard Ethernet and RS-232 digital interfaces, you can simplify integrating the DL into your system design. Wisman's DL series is a high-performance 19 'standard rack type high-voltage power supply, and DL series has a complete protection system. It can be controlled remotely or locally. The front panel has the functions of voltage and current display with functions such as over-voltage, over-current, short circuit protection; arcing, over temperature protection, safety interlock, etc. Wide range adjustment and flexible multiple optional functions. Many operational features can be configured by the user to suit their particular requirements.
DL60P1200 uses power switching IGBTs to ensure efficient operation over the full operating range. The series delivers exemplary performance in harsh electrical environments and an exceptionally high-packing density for high voltage power supplies.
TYPICAL APPLICATIONS
Electrostatic Applications
Electrostatic electret
Melt-Down Fabric Electrostatic Electret
SPECIFICATIONS
Input:86~256VAC ,Maximum 10.0A .
60kV Maximum output Voltage .1200W Maximum output power .
Stability:0.02% per 8 hours after 1/2 hour warm-up.
Temperature Coefficient:≤25ppm/℃.
Ripple:0.01% p-p of maximum rated output voltage.
Voltage Programming:
Front panel: voltage are continuously adjustable from 0 to maximum voltage by internal potentiometers.
External remote:voltage are continuously adjustable from 0 to maximum voltage by 0 ~ +10Vdc External voltage.
Current Programming(option):
Front panel: current are continuously adjustable from 0 to maximum current by internal potentiometers.
External remote :current are continuously adjustable from 0 to maximum current by 0 ~ +10VdcExternal voltage.
Voltage/Current Monitor:0 ~ +10Vdc volt corresponds to 0 to maximum output, Zout=11kΩ, accuracy:±1%.
Remote Voltage Monitor:JB2 contain a 0 ~ +10Vdc voltage signal,it can connect digitalor index display.
Voltage Load Regulation:0.005% ( no load to full load change).
Voltage Line Regulation:±0.005% (input voltage line change±10%).
Current Load Regulation:0.005% ( no load to full load change).
Current Line Regulation:±0.005% (input voltage line change±10%).
Connector:
HV output connector:series output option(1m);
input connector:DB15 connector,contain control and monitor signal.
Operating Temperature:0℃~+50℃.
Storage Temperature:-40℃~+85℃
Dimensions 1200W :3.47”H x 19.00”W x 19.00”D(88.00mm x 482.5.00mm x482.5.00mm).
Weight:14kg.
