Product introduction
INTRODUCTION
Wisman's MC miniaturized module is fully designed for photomultiplier tubes, mass spectrometers, and electron microscopes. with low-noise and high-stability. The price is competitive.
MC is a printed circuit board mounting high voltage power supply with small size, ultra-low ripple 5mV, low temperature coefficient 10ppm and high stability. It is six-shields and has strong anti-interference with the function of overcurrent ,short circuit and arc protection.
APPLICATION
Mass spectrometry
Photomultiplier tubes(PMT)
Solid state detectors
Piezo crystal devices
Ultrasonic transducers
Microchannel plates(MCP)
Spectroscopy
Scintillation counters
Electron multiplier detectors
Nuclear instruments
Electrophoresis
Semiconductor testing
DNA sequencing
Radiation counter
Electron and ion beams
Electrostatic chuck
High voltage
Bias hipot testing
Precision lenses
Image intensifiers
Semiconductor testing
Chemical applications
Laboratoty applications
Industrial application suppliers
SPECIFICATION
Input voltage:12±0.5V (optional: -5: 5V±1V, -15: 15V±1V, -24: 24V±1V)
Input Current:
No load: 15mA
Full load: 95mA
Output voltage range:0 to 2000V or 0 to -2000V
Maximum output power:0.5W, 1W, 2W.
Voltage regulation rate:0.001% typical
Stability: 0.001% per hour
Ripple/Noise:5mV (at maximum voltage and maximum current), typical.
Output voltage control:
Control by external voltage (0 V to +5 V) or pass External potentiometer setting (20 kΩ ±2.5 kΩ)
Voltage control input impedance: 100KΩ
Output voltage rise time: 50ms (0-99%)
Temperature Coefficient:10ppm/℃temperature:
Operating temperature: 0℃ to 50℃
Storage temperature: -20℃ to +70℃humidity:
Humidity:
working humility: below 80%, no condensation.
Storage humidity: below 80%, no condensation.
Protective function:The module has input voltage polarity reverse connection protection, high control voltage or reverse connection protection, continuous overload protection, short circuit protection, arc protection

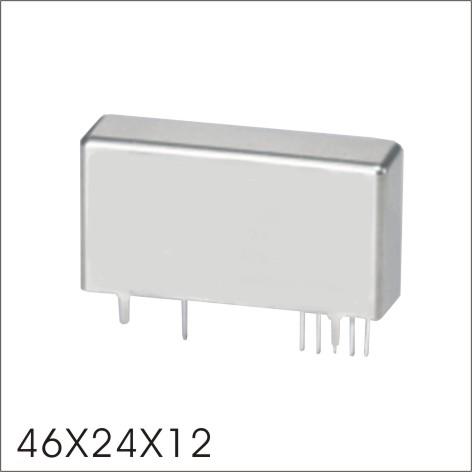

Dimensions: D46 X W24 X H12
Weight: 25g (1.09 OZ)
For information concerning our high voltage products, please call at 086-029-33693480 or visit our website www.wsmhv.com
