Product introduction
INTRODUCTION:

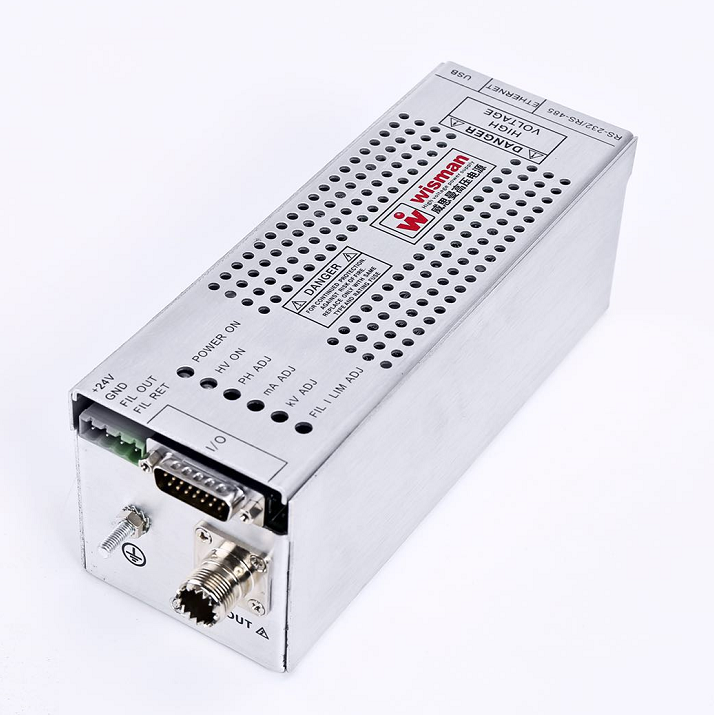

Wisman MN series high-voltage power supply has good regulation performance and with output up to 50KV. MN series power supply has functions of overvoltage, short circuit protection and safety interlock. Providing optional network port, RS-232 or RS-485 interface.
Optional features: RS485 RS-485 interface,NAT does not turn off when arcing, AT(X) Arc shutdown (1-8 arc)
APPLICATION:
High voltage test
Electron beam/ion beam
Mass spectrometry
Electrostatic chuck (ESC)
ESD special for electrostatic discharge
Scintillator
Electron gun
Ion gun
Nuclear instrument
Electrostatic lens
Spectroscopy
Electrophoresis
Electrostatic spinning
Electrostatic flocking
Capacitor Charging
Comprehensive laboratory use
DNA sequencing
Protein extraction
Electrostatic printing
High voltage bias
Medical and chemical engineering
Scientific experiments
Industrial applications.
SPECIFICATION
Input: 24V±10% DC, maximum current 5A. The maximum is 50W.
Output:1kv, 3kv, 6kv, 10kv, 20kv, 30kv, 40kv, 50kv
Voltage control:
Inside the power supply: The multi-turn potentiometer that comes with the power supply can set the output voltage between 0V and the highest voltage.
External remote control: external 0 to 10V control signal can adjust the output from 0V to the highest output voltage.
Current control:
Internal: The multi-turn potentiometer that comes with the power supply can set the current from 0A to full.
External remote control: external 0 to 10V control signal can set the current from 0A to full.
Voltage regulation :
Relative load: 0.01% (no load to rated load)
Relative input: ±0.01% (input voltage change is ±10%)
Current regulation:
Relative load: 0.01% (no load to rated load)
Relative input: ±0.01% (input voltage change ±10%).
Ripple voltage: Under the premise of output rated voltage, the peak ripple voltage is 0.1% of the highest output voltage.
Working temperature: 0 to +50°C.
Storage temperature:-40 to +85°C.
Cool down:50W unit natural cooling,
Temperature Coefficient: ≤25ppm per degree Celsius.
Stability: It is less than 0.02% every 8 hours after starting for half an hour. ≤0.01% per hour
Voltage and current indication:0 to 10V, accuracy is 1% under rated output conditions.
Dimensions: 2.95”H x 2.95”W x 8.06”D
(75.00mm x 75.00mm x 205.00mm)
