Product introduction
INTRODUCTION:

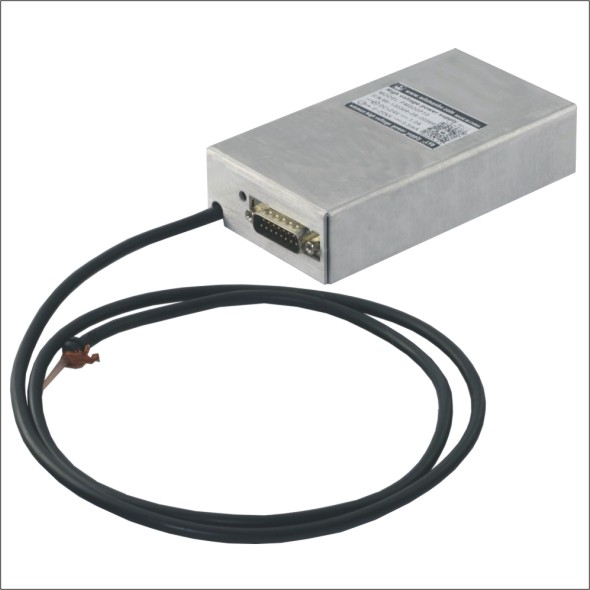

Wisman's XA series is high stability, low ripple compact x-ray generators specialized for all kinds for x-ray tubes from different manufacturers. XA series adopts Wisman's specialized high voltage encapsulation techniques, with the output voltage ranges from 10kV, 20kV,30kV, output power 5W,10W,20W option. XA series is with the small package size, integrates filament supply providing regulated DC current adjustable between 0.3A to 3.5A at 5.5V. Wisman's XA series has the function of programming voltage, programming the emission current, has a preheating function internal and provides the signal of high voltage monitor and high voltage enable. Wisman's XA series can realize local and remote control, with option of RS232,RS485,USB2.0 and ET interface.
XA series is the best choice of ultra-low ripple requirement users.
APPLICATION:
Thickness gauges
Sulfur gauges
Static elimination
Non-destructive detection
Portable X-ray machines
Online element analysis
Thickness detection
X-ray fluoroscopy
Particle size detection
Density measurement
Paper composition detection
ROHS detector.
SPECIFICATIONS:
Input: 24V±10% DC, maximum current 3.0A.
Output: 10KV, 20KV, 30KV, 3 kinds of highest voltage output optional, 5W, 10W, 20W, 3 kinds of output power optional.
Voltage control:
Local:the multi-turn potentiometer that comes with the power supply can set the output voltage between 0V and the highest voltage.
Remote: external 0 to 10V control signal can adjust the output from 0V to the highest output voltage.
Launch control:
Local:the internal potentiometer sets the beam current between 0 and the full output current.
Remote: external 0 to 10V control signal can adjust the output from 0V to the highest output current.
Filament power supply: current: 0-3.5A adjustable voltage: 0-5.5V adjustable
Voltage regulation:
Relative load: 0.01% (no load to rated load)
Relative input: ±0.01% (input voltage change ±10%)
Current regulation:
Relative load: 0.01% (no load to rated load)
Relative input: ±0.01% (input voltage change ±10%)
Ripple voltage: 0.005% p-p minimum.
Working temperature: 0℃ to +40℃
Temperature coefficient: ≤25ppm/℃, voltage and current.
Stability: ≤0.007%/1 hour, ≤0.02%/8 hours, ≤0.05%/1000 hours after turning on for half an hour.
Voltage and current indication: 0V to +10Vdc, proportional to 0 to rated output. Accuracy: ±2%
Dimensions: 2.56”H x 4.53”W x 5.91”D (65.00mm x 115.00mm x150.00mm)
X-ray fluorescence instrument, paper, film, aluminum foil thickness measurement, online element analysis, X-ray fluoroscopy, particle size detection, density measurement, paper composition detection, online process control, ROHS detection, thickness measurement, printed circuit board inspection system, X X-ray fluorescence analysis, radiography field, X-ray imaging, multi-layer PCB alignment, particle size detection, density measurement, process control, X-ray spectroscopy, welding head, wire head detection corresponding X-ray tube (cathode or anode grounded ): Kevex, Oxford, RTW, Superior, Varian, Trufocus and several domestic brands.
It is equipped with Shanghai Keyiwei KYW1300, Dandong Zhida XH9405, Oxford TF series silicone closed light tube TF1001 TF1002 TF1003 TF1005 TF1010 TF1015 TF3001 TF3002 TF3003 TF3004 TF3005.
