Product introduction
INTRODUCTION

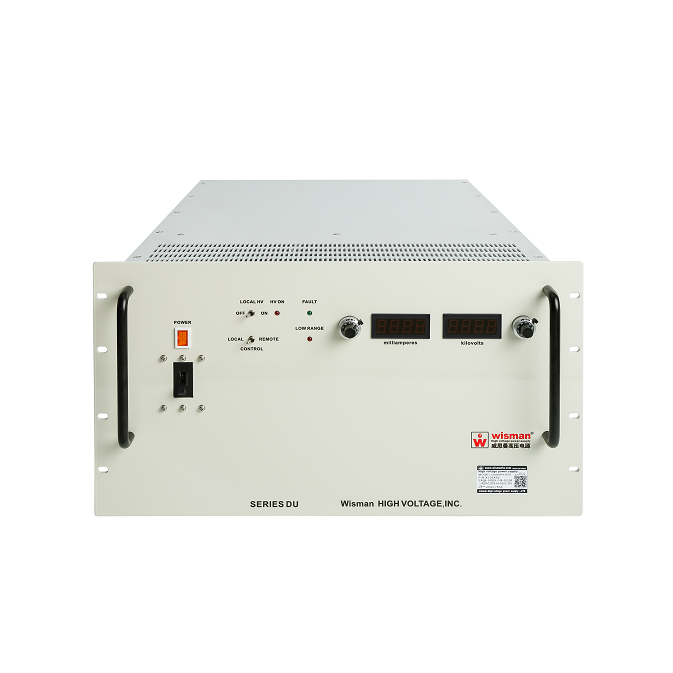

DU series power supplies are advanced 5 kW high voltage power supplies. DU is an AC/DC chassis type high voltage power supply with low start-up voltage, low ripple and low noise 0.05% RMS. DU features air insulation, light weight, fast recovery response and strong spark prevention. Excellent regulation. Arc protection: After each load arc, the high voltage output is briefly inhibited to extinguish the arc. Arc counting: The internal circuit continuously senses and integrates arcs that occur within a certain period of time. Unless the load arc is very severe, the power supply will automatically start and not shut down. Pulse width modulation. Offline pulse width modulation provides higher efficiency, fewer parts and improved reliability. Low ripple. Constant current/current trip. A switch on the rear panel allows you to select the current mode. Overheat protection, thermal switch and fan speed sensing will shut down the power supply due to overheating or slow fan speed.OEM customization is available.
APPLICATIONS：
Ion Beam Implantation
Accelerator
Capacitor Charging
Electronic Component Aging
Insulation Test
High Voltage Testing
Electron Beam
Ion Beam
Focus Ion Beam
Lithography Technology
Electrostatic Applications
Semiconductor Processing
Electron Beam Welding
High Power RF Transmitters
Electrostatic Precipitators
X-Ray Systems
Science
Laboratory Applications
Industrial Applications.
OPTIONAL FUNCTIONS：
200 180 to 220 VRMS, three phase input, 48-63 Hz(Required for SEMI compliance.)
400 340 to 460 VRMS, three phase, 48-63Hz.(Required for CE compliance.)
SPECIFICATIONS
Input: 220Vac±10%, 5kW,Three-phase; AC380V three-phase optional
Output:from 8kV to 150kV other maximum voltage output optional, 0V to maximum voltage adjustable .
Stability: less than 0.01% after starting on for an hour.
Ripple: 0.05%p-p.
Temperature coefficient: 25ppm, higher temperature coefficient can be customized.（15ppm/℃）
Local: the multi-turn potentiometer can set the output voltage between 0V and the highest voltage.
Remote: external 0 to 10V control signal can adjust the output from 0V to the highest output voltage.
Current control:
Local: the multi-turn potentiometer can set the current from 0 to the highest current.
Remote: external 0 to 10V control signal can transfer the current
Set from 0 to the highest current.
Voltage regulation :
Relative load: 0.005%+5000mV (no load to rated load)
Relative input: ±0.005%+500mV (input voltage change is ±10%)
Current regulation:
Relative load: 0.05%±100uA (no load to rated load)
Relative input: ±0.05% (input voltage change ±10%).
Ripple voltage: 0.1% P-P +1Vrms.
Ambient temperature: 0 to +50°C.
Storage temperature: -40℃ to +85℃.
Voltage and current indication: 4-digit digital panel meter with an accuracy of 1% under rated output conditions.
Dimensions:
5kW:8KV-150KV
height 266mm (3U) width 483mm, length 610mm,
