Product introduction
INTRODUCTION

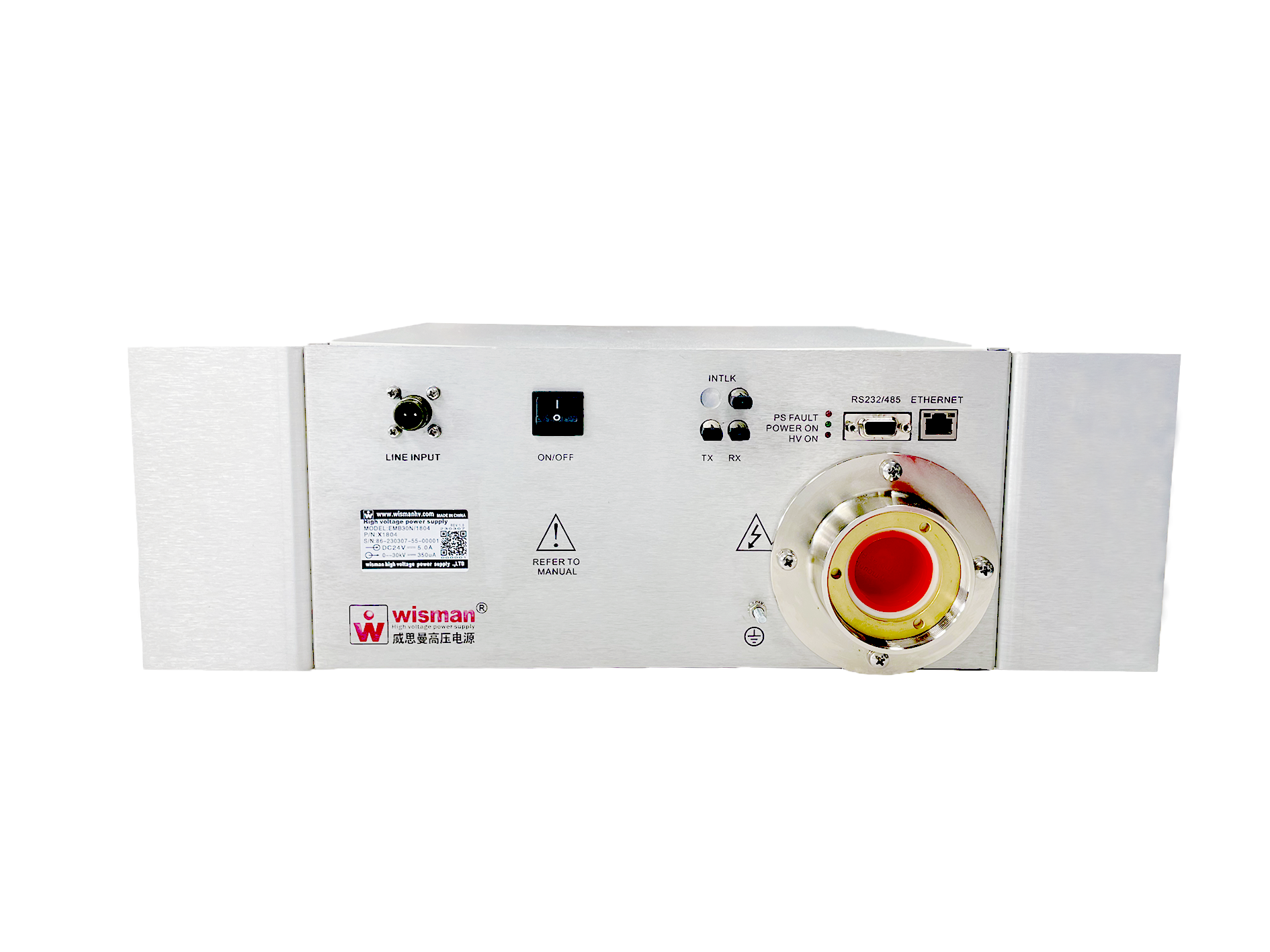

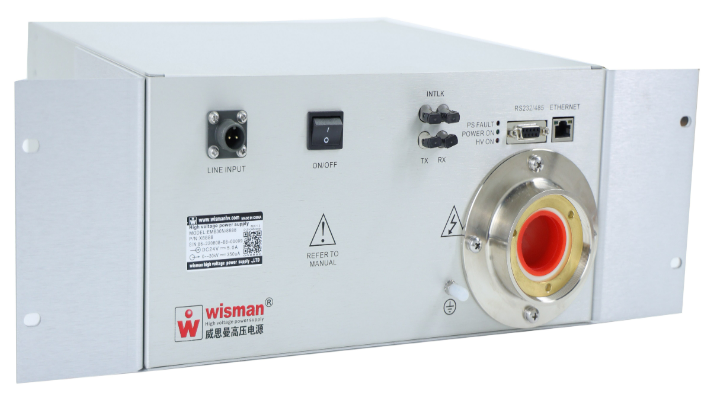

The EMC series of Wisman high voltage power supplies are comprehensive multi-output high voltage power supplies for focused ion beams. Typical applications include transmission and scanning electron microscopy; semiconductor analysis, milling and repair of optical disc drive heads, ion; beam etching and focused ion beam lithography. The modular design approach allows individual components to be easily configured in a common rack-mounted assembly on a large chassis. Interface, logic and control circuits are manufactured using surface mount technology to minimise cost and size. Integrated accelerating power supply, filament power supply, absorber power supply, suppressor power supply and lens power supply. Low output ripple, excellent tuning ratio, stability, temperature drift and accuracy. Wisman's unique high voltage suspension and digital control technology. the EMC series of high precision modules are competitively priced and ideal for OEM applications.
APPLICATIONS：
Field Emission Scanning Electron Microscope
Electron beam power supply
Semiconductor Analysis, Processing and Repair
Ion Beam Etching
Focused Ion Beam Lithograph
Technical parameters：
Input: DC24V, 47 to 63Hz
Accelerated power supply
Output voltage:
-200V to-60KV, negative polarity.
Output current:
100μA, 300μA
Ripple:
100μA:75 mV P-P，from 0.1 HZ to1MHZ
300μA:120 mV P-P，from 0.1 Hzto1MHZ
Input Adjustment Ratio：
Input variation +/-10% for 100mV
Load Adjustment Rate:
± 0.01%, maximum voltage, full load variation
Stability：
1.5V/10 hours after 2 hours of preheating
Temperature coefficient:
25 PPM / °C
Filament power supply:
Filament Voltage:
From 0 to 3 VDC
Filament Current:
From 0 to 3A
Ripple:
10mA P-P,from 0.1 Hz to1MHZ
Load Adjustment Ratio:
± 0.1 %, maximum voltage, full load variation
Line Adjustment Ratio:
+/-10% variation to 5mA
Stability:
5mA/10 minutes after 2 hours of preheating
Temperature coefficient:
200 PPM / °C
Suppression pole power supply
Voltage:
-10V to-1KV, negative polarity.
Output current:
300uA
Ripple:
20 mV P-P from 0.1 Hz to 1 MHZ
Load Adjustment Rate:
± 0.01%, maximum voltage, full load variation
Input Adjustment Ratio:
Input +/-10% variation to 100mV
Stability:
500mV/10 hours after 2 hours of preheating
Temperature coefficient:
25PPM /°C
Absorption Pole Power
Voltage:
0 V to 6 KV,
Output current:
500μA
Ripple:
30 mV P-P from 0.1 Hz to 1 MHZ, 400μA or less
Load Adjustment Rate:
± 0.01%, maximum voltage, full load variation
Input Adjustment Ratio:
Input +/-10% variation to 100mV
Stability：
500mV/10 hours after 2 hours of preheating
Temperature coefficient:
25 PPM / °C
