INTRODUCTION
Not recommended for new designs, please choose MDA series
APPLICATIONS: MCA
APD(Avalanche Photo Diode)
Electron Multiplier
Hibrid Photo Detector
Bar Code Scanners
Bomb Detectors
Cellular Electrophoresis
Detectors
E-chuck(Electrostatic Chuck)
ESD(Electrostatic Discharge Testing)
Flow cytometry
FPD(Flat Panel Ditector)
Gamma Cameras
Geiger Counter
GM Tubes(Geiger Mueller Tubes)
Hi Pot Testing
Ion Mobility Spectrometry(IMS)
Ionizers
Leak Detector
PMT,MM,radiation counter
Electron Beam/Ion Beam
Mass spectrometry
Photo Multiplier Tubes
Scintillators
Electron Guns
Ion Guns
Nuclear Instruments
Electrostatic lenses
Spectroscopy
Micro channel Plates
ESD(Electrostatic Discharge Testing)
SPECIFICATIONS:
Input: 15Vdc±1VDC,450mA TYP( Option:12V,24V power supply)
Output voltage: 300V,500V,1K,1.25KV,1.5KV,2K,2.5KV,3KV
Output power: 1W,2W,3W,4W,5W selectable
Ripple: 0.001%
Stability: 0.001%
Temperature coefficient: 0.001/°C
Line regulation: 0.001%
Load regulation:0.01%
Short circuit protection and arc fault protection
Temperature:
Working temperature:
Commerical grade: -10℃ to -50 ℃(case temperature)
Industrial grade G: -25℃ to 65 ℃(case temperature)
Top grade T: -40℃ to 95 ℃(case temperature)
Storage temperature:
Commerical grade S: -20℃ to -70 ℃(case temperature)
Industrial grade G: -25℃ to 95 ℃(case temperature
Top grade T: -40℃ to 125 ℃(case temperature)
Humidity:
20-80% RH( no condensation)

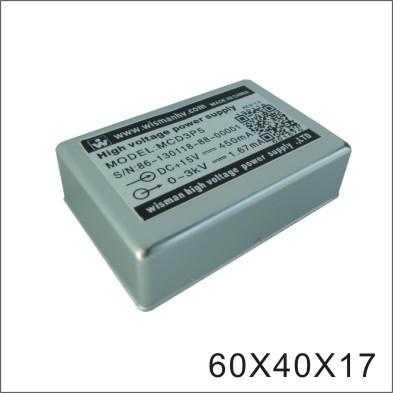

Dimensions:
(60mm X 40mm X 17mm)
Weight:
4.23oz. (120g), typical
For information concerning our high voltage products, please call at 086-029-33693480 or visit our website www.wsmhv.com
