Product introduction
INTRODUCTION

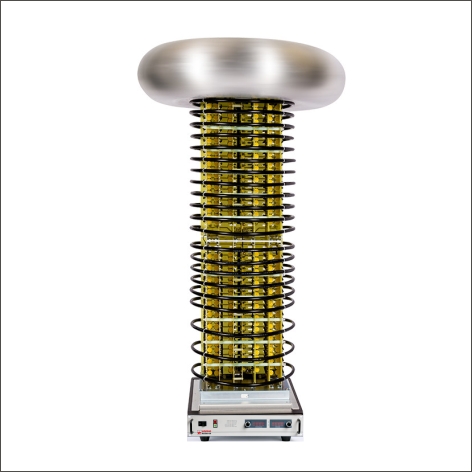

Wisman TA series is a high-performance tower air-insulated high-voltage power supply dedicated for accelerator and capacitor charging and discharging. TA series has a complete protection system. It can simulate remote control or computer remote control, constant voltage and constant current automatic cross control, high voltage output terminal overvoltage, overcurrent, short circuit protection, arcing, overtemperature protection and safety interlocking functions. Wide range of adjustment and flexible multiple optional functions.
APPLICATIONS
Capacitor Charging
Electronic Component Aging
Insulation Test
High Voltage Testing
Electron Beam /Ion Beam
Focus Ion Beam
Ion Inpouring
Lithography Technology
Electrostatic Applications
Electrostatic Deflexion
lectrospinning
Electrophoresis Capillary Electrophoresis
Science,Laboratory Applications
Industrial Applications.
SPECIFICATIONS
Input: AC220±10%, (AC110V optional) maximum current 15A.
Output: 200KV to 600KV and other maximum voltage output optional, 0V to the highest voltage adjustable.
Voltage control:
External analog remote control: external 0 to 10V control signal can adjust the output from 0V to the highest output voltage.
Computer remote control.
Current control:
External analog remote control: external 0 to 10V control signal can set the current from 0 to the highest current.
Computer remote control.
Voltage regulation:
Relative load: 0.005% (no load to rated load)
Relative input: ±0.005% (input voltage change is ±10%)
Current regulation:
Relative load: 0.1% (no load to rated load)
Relative input: ±0.005% (input voltage change ±10%).
Ripple voltage: 0.05% P-P +1Vrms.
Temperature coefficient: 25ppm, higher temperature coefficient can be customized.
Stability: less than 0.01% per hour after starting on for half an hour. Less than 0.05% every 8 hours.
Ambient temperature: -20 to +40°C.
Storage temperature: -40℃ to +85℃.
Voltage and current indication: 4-digit digital panel meter with an accuracy of 1% under rated output conditions. Computer control accuracy is 2%.
Size: Drive unit: 214.1mmX515.9mmX573.0mm
Size: Remote control unit: 132.54mmX482.6mmX130mm
